1923 M.P. MOLLER PIPE ORGAN

Grace's "Mighty Moller" was originally installed as part of Grace Chapel's 1922 rebuild.  The M.P. Moller Opus 3592 organ served the congregation unaltered for 90 years, until it's first renovation in 2013, at which point it was completely removed, restored, and added a floating division of pipes at the rear of the nave, as well as additional ranks in the main pipe chamber.

ORIGINAL SPECIFICATION

The original build of the organ consisted of electro-pneumatic technology, with 11 ranks of pipe in a fully enclosed chancel chamber and a blower located 2 floors below in a sub-basement.

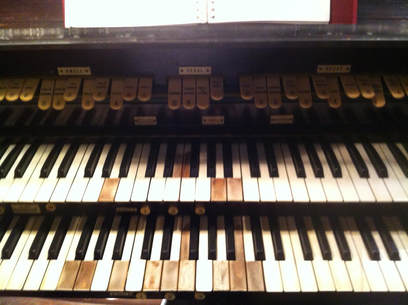

The original console, in use from 1923 - 2013.

​The original stoplist:

​GREAT ORGAN

8' Oboe
8' Open Diapason
8' Stopped Diapason
8' Viole D'Orchestre
8' Dulciana
4' Flute Traverso
4' Octave
Chimes (non existent)
SW TO GT 16
​SW TO GT
SW TO GT 4
GREAT 16
GREAT 4

SWELL ORGAN

Tremulant
8' Vox Humana
8' Oboe
8' Violin Diapason
8' Stopped Diapason
8' Viole d'Orchestre
​8' Dulce
8' Viole Celeste
4' Flute
SWELL 16
SWELL 4

​PEDAL ORGAN

16' Bourdon
16' Lieblich Gedeckt
SW TO PED
GT TO PED

RESTORATION AND EXPANSION

In April 2013, Grace stepped out in faith to rebuild and expand the organ to meet the worship and music needs of our growing congregation. The Steiner-Murphy Organ Company of Cumberland, Maryland began the restoration on April 8, 2013 with complete removal of the pipes and console. The organ was taken to Cumberland for extensive cleaning and restoration work. The restoration included rebuilding and re-leathering the existing windchests and pipes, installation of a reconditioned console, solid state technology, midi technology, and integration of a 9-rank 1909 Estey Organ donated to us from Mr. Dean Jestes.

In September of 2013, Phase one of our installation began with the installation of a new 3-rank nave organ, located in the rear gallery.  This antiphonal division is controlled from the chancel console and is not under expression.

Phase two consisted of rebuilding the chancel pipe chamber.  The chamber was stripped down to the bare stone, framed, insulated and rebuilt with acoustic concrete panel walls and water channels in the ceiling to avoid damage.

Phase three -- re-installation of the main chancel organ began in January 2014 and was completed and dedicated on March 2, 2014.

CURRENT SPECIFICATION

The Current Stoplist:

GREAT ORGAN

16' Violone
8' Open Diapason
8' Harmonic Flute
8' Viole de Orchestre
8' Dulciana
4' Octave
4' Flauto Traverso
2 1/3' Quint
2' Super Octave
Mixture III
8' Trumpet
8' Oboe
Chimes
GREAT 4'
SW TO GT 16'
SW TO GT 8'
SW TO GT 4'
NAVE ON GT 8'
​MIDI ON GT

SWELL ORGAN

16' Lieblich Gedeckt
8' Violin Diapason
8' Stopped Diapason
8' Viole de Orchestre
8' Viole Celeste
8' Dulciana
4' Principal
4' Harmonic Flute
2 2/3' Nazard
2' Piccolo
16' Contra Oboe
8' Trumpet
8' Oboe
8' Vox Humana
4' Clarion
Tremolo
SWELL 16'
SWELL 4'
Swell Unison Off
NAVE ON SW 8'
​MIDI ON SW

NAVE ORGAN

8' Diapason
8' Melodia
4' Octave
4' Hohl Flute
2' Fifteenth

NAVE PEDAL ORGAN

16' Bourdon
8' Diapason
​8' Flute

​

PEDAL ORGAN

32' Resultant
16' Open Diapason
16' Bourdon
16' Violone
8' Octave
8' Bourdon
8' Gedeckt
5 1/3' Quint
4' Super Octave
4' Flute
16' Contra Oboe
8' Trumpet
4' Clarion
GT TO PED 8'
GT TO PED 4'
SW TO PED 8'
SW TO PED 4'
NAVE ON PED 8'
​MIDI ON PED

PISTONS

Set Piston
8 Programmable General Pistons
4 Programmable GREAT Pistons
4 Programmable SWELL Pistons
Prev / Next Memory Level Pistons
General Cancel
​Tutti

TOE KICK PISTONS

8 General Toe Kicks
GT TO PED Reversible
32' Reversible
Tutti

EXPRESSION SHOES

Swell (entire chancel chamber)
Crescendo

ADDITIONAL TECH

Petersen ICS-4000 Organ Control Unit

Petersen MIDI Controls

​USB Interface

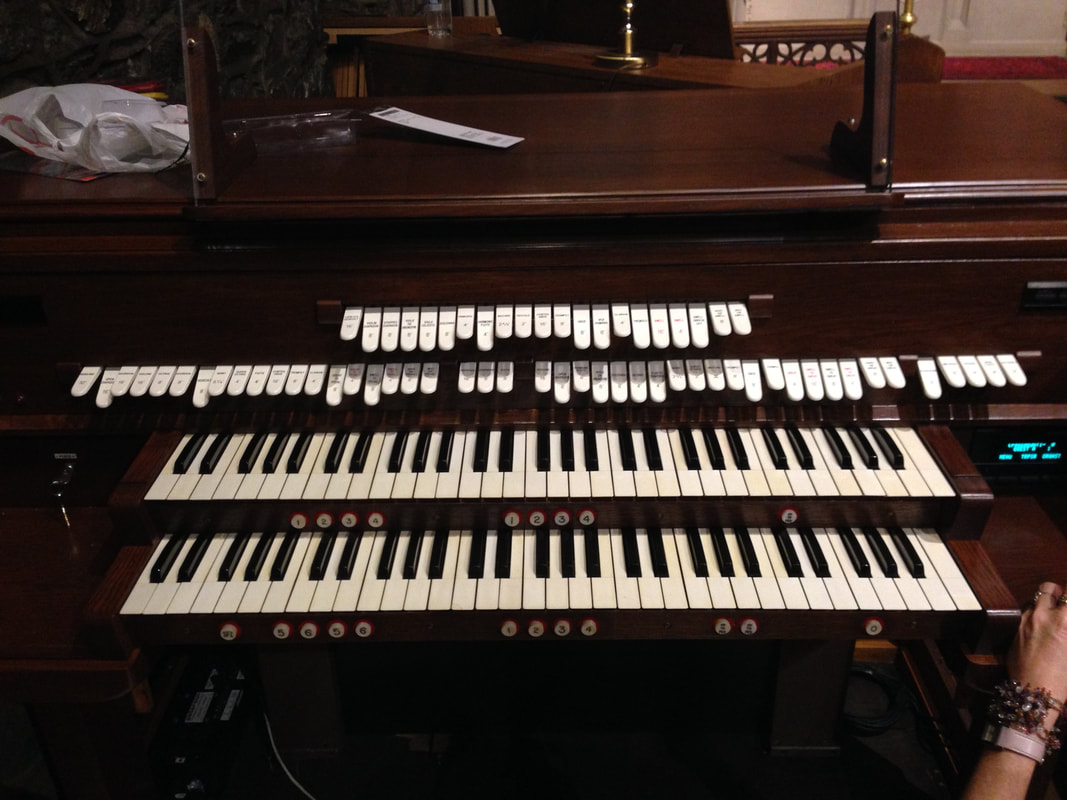

The Current Organ Console, installed in 2014.
